Q11 series swing beam shear
Technical parameters:
|
名稱 Parameter
|
QH11-12*3200
|
QH11-
13*2500 |
QH11-
16*2500 |
QH11-
16*3200 |
QH11-
20*2500 |
QH11-
12*3200 |
QH11-
25*2500 |
|
可剪板厚
Shearing Thickness mm |
12
|
13
|
16
|
16
|
20
|
20
|
25
|
|
可剪板寬
Shearing Width mm |
3200
|
2500
|
2500
|
3200
|
2500
|
3200
|
2500
|
|
滿載負荷剪切次數
Number of Shearing Full Load min |
8
|
10
|
8
|
8
|
6
|
6
|
6
|
|
板料強度
Strength of Sheets N/min |
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
≤450
|
|
剪切角
Shearing Angler |
2°30"
|
3°
|
3°
|
2°30"
|
3°
|
2°30"
|
3°
|
|
工作臺高度
Height of the work Bench mm |
678
|
678
|
678
|
700
|
700
|
800
|
900
|
|
電機功率
Motor Power KW |
15
|
15
|
15
|
22
|
30
|
30
|
45
|
|
后擋料范圍
Backgauge Rang mm |
600
|
460
|
460
|
650
|
650
|
650
|
650
|
|
喉口深度
Throat Depth mm |
230
|
230(500)
|
230
|
230
|
230
|
230
|
230
|
Performance characteristics:
This series of products using Longmen type structure, is directly driven by the motorthrough the coupling to the two groups of gear drive chain, one group is arranged in a closed gear box, a group of open transmission speed, stable operation, convenient use and maintenance. Widely used in metal structure factory, shipyard, boiler factory,motor factory, and the general mining, metallurgical industry.

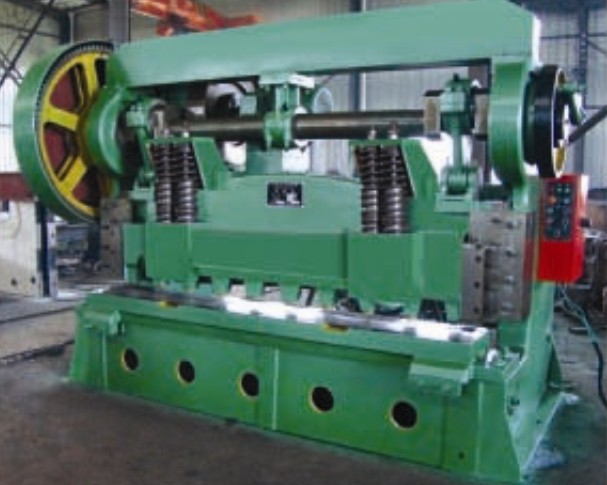

.jpg)
The main technical parameters of Q11 precision shearing machine:
|
規格
Specification |
可剪板厚
Shearing Thickness |
可剪板寬
Shearing Width |
剪切角
Shearing Angl |
行程次數
Number of Stroke |
后擋料范圍
Backgauge Rang |
工作臺高度
Height of the work Bench |
電機功率
Motor Power |
外形尺寸
Overall Dimensions |
|
mm
|
mm
|
(°)
|
min-1
|
mm
|
mm
|
KW
|
mm(L*W*H)
|
|
|
Q11-2.5*2500
|
2.5
|
2500
|
1°
|
47
|
0-650
|
800
|
5.5
|
3214*2210*1180
|
|
Q11-3.2*2000
|
3.2
|
2000
|
1°45"
|
47
|
0-650
|
800
|
7.5
|
2624*2210*1180
|
|
Q11-3.2*2500
|
3.2
|
2500
|
1°18"
|
47
|
0-650
|
800
|
7.5
|
3124*2210*1180
|
|
Q11-3.5*1250
|
3.5
|
1250
|
1°30"
|
47
|
0-650
|
800
|
5.5
|
1860*2210*1180
|
|
Q11-3.5*3050
|
3.5
|
3000
|
1°30"
|
47
|
0-650
|
800
|
9
|
3599*2448*1290
|
|
Q11-2*366
|
2
|
3660
|
1°30"
|
47
|
0-650
|
800
|
9
|
4200*2448*1240
|
Q11 series shears
The main technical parameters of Q11 shearing machine:
|
規格
Specification |
可剪板厚
Shearing Thickness |
可剪板寬
Shearing Width |
剪切角
Shearing Angl |
行程次數
Number of Stroke |
后擋料范圍
Backgauge Rang |
電機功率
Motor Power |
外形尺寸
Overall Dimensions |
|
mm
|
mm
|
(°)
|
min-1
|
mm
|
KW
|
mm(L*W*H)
|
|
|
Q11-2*1000
|
2
|
1000
|
1°40"
|
55
|
350
|
1.5
|
1575*1405*1073
|
|
Q11-3*1300
|
3
|
1300
|
2°14"
|
54
|
350
|
2.2
|
2080*1505*1245
|
|
Q11-3*1500
|
3
|
1500
|
2°
|
54
|
350
|
2.2
|
2280*1505*1245
|
|
Q11-4*2000
|
4
|
2000
|
1°30"
|
55
|
500
|
4
|
3000*1970*1250
|
|
Q11-4*2500
|
4
|
2500
|
1°30"
|
55
|
500
|
5.5
|
3500*1970*1250
|
|
Q11-4*3200
|
4
|
3200
|
1°14"
|
50
|
500
|
7.5
|
4200*1970*1300
|
|
Q11-4*4000
|
4
|
4000
|
1°14"
|
50
|
500
|
7.5
|
5000*1970*1350
|
|
Q11-6.3*2000
|
6.3
|
2000
|
2°
|
40
|
500
|
7.5
|
3175*1765*1530
|
|
Q11-6*2500
|
6
|
2500
|
1°45"
|
40
|
500
|
7.5
|
3675*1765*1530
|
|
Q11-6*3200
|
6
|
3200
|
1°30"
|
40
|
500
|
7.5
|
4450*2165*1520
|
|
Q11-8*2500
|
8
|
2500
|
1°57"
|
45
|
700
|
11
|
3690*2165*1520
|
|
Q11-13*2500
|
13
|
2500
|
3°
|
30
|
700
|
15
|
3680*2330*2500
|
|
Q11-16*2500
|
16
|
2500
|
3°
|
30
|
700
|
22
|
3680*2800*2450
|
|
Q11-20*2500
|
20
|
2500
|
3°
|
25
|
700
|
22
|
3950*2800*2900
|
