QC11YSeries hydraulic guillotine shearing machine

Performance characteristics:

    All steel welded structure , vibrating treatment of ageing for removal of internal stress , with good rigidity and stability .
    Integrated hydraulic transmission system , with good reliability .

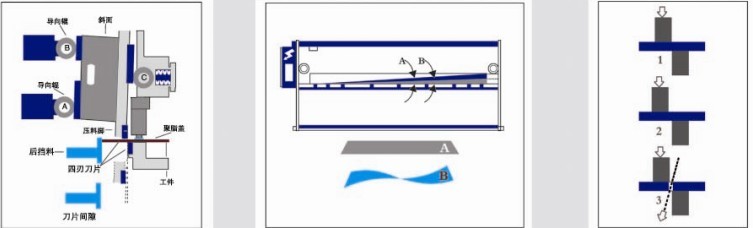

    Triple support rolling guide raikl to eliminate gaps of support and enhnce shearing quality .
    Mechanical rear stopper with manual fine tuninfg , and digital indication .
    Clearance in between shearing blades adjusted by hand wheel to be quyick , accurate and convenient .
    Rectangular blades with four cutting edges to prolon working life , adjustable shearing angle to reduce deformation of the sheet .
    Upper blade holder has inward tiling structure to facilitate material feed in and also enhabnce accuracy of the work piece .
    Function of shearing in sections , function of aligning with light .
    Optional ：rear material holding device ( or for other choice )

Main technical data:

規格 Specification	可剪板厚 Shearing Thickness	可剪板寬 Shearing Width	行程次數 Strokes	后擋料行程 Backgauge Rang	剪切角度 Shearing Angler	工作臺高度 Throat Height	電機功率 Main Power
規格 Specification	mm	mm	mm-1	mm	(°)	mm	KW
QC11Y-6*2500	6	2500	10-35	20-600	1°30'	800	7.5
QC11Y-6*3200	6	3200	8-35	20-600	1°30'	800	7.5
QC11Y-6*4000	6	4000	7-35	20-600	1°30'	800	7.5
QC11Y-6*5000	6	5000	6-25	20-800	1°30'	900	11
QC11Y-6*6000	6	6000	5-25	20-800	1°30'	1000	11
QC11Y-8*2500	8	2500	10-35	20-600	1°30'	800	7.5
QC11Y-8*3200	8	3200	8-35	20-600	1°30'	850	7.5
QC11Y-8*4000	8	4000	7-35	20-600	1°30'	900	7.5
QC11Y-8*5000	8	5000	6-25	20-800	0.5-2°	1000	15
QC11Y-8*6000	8	6000	5-25	20-800	0.5-2°	1050	15
QC11Y-12*2500	12	2500	10-35	20-800	0.5-2.5°	840	15
QC11Y-12*3200	12	3200	6-20	20-800	0.5-2.5°	900	15
QC11Y-12*4000	12	4000	6-20	20-800	0.5-2.5°	940	15
QC11Y-12*5000	12	5000	5-15	20-800	0.5-2.5°	1000	15
QC11Y-12*6000	12	6000	6-15	20-800	0.5-2.5°	1060	30
QC11Y-16*2500	16	2500	8-30	20-800	2°30'	840	18.5
QC11Y-16*3200	16	3200	7-30	20-800	2°30'	900	22
QC11Y-16*4000	16	4000	6-30	20-800	2°30'	940	30
QC11Y-16*5000	16	5000	6-15	20-800	0.5-2.5°	1000	30
QC11Y-16*6000	16	6000	5-15	20-800	0.5-2.5°	1100	37
QC11Y-20*2500	20	2500	9-30	20-1000	0.5-3°	900	30
QC11Y-20*3200	20	3200	7-30	20-1000	0.5-3°	950	30
QC11Y-20*4000	20	4000	6-30	20-1000	0.5-3°	1100	30
QC11Y-20*5000	20	5000	5-30	20-1000	3°	1100	37
QC11Y-20*6000	20	6000	5-15	20-1000	3°	1200	45
QC11Y-25*2500	25	2500	5-25	20-1000	0.5-3.5°	900	37
QC11Y-25*3200	25	3200	4-25	20-1000	0.5-3.5°	950	37
QC11Y-25*4000	25	4000	3-20	20-1000	0.5-3.5°	1100	37
QC11Y-32*2500	32	2500	4-12	20-1000	0.5-3.5°	1000	55
QC11Y-32*3200	32	3200	4-12	20-1000	0.5-3.5°	1100	55
QC11Y-40*2500	40	2500	3-10	20-1000	0.5-4°	1200	60
QC11Y-40*3200	40	3200	3-10	20-1000	0.5-4°	1200	60

Description and specifications given in this catalogue are subject to modification without notice.
